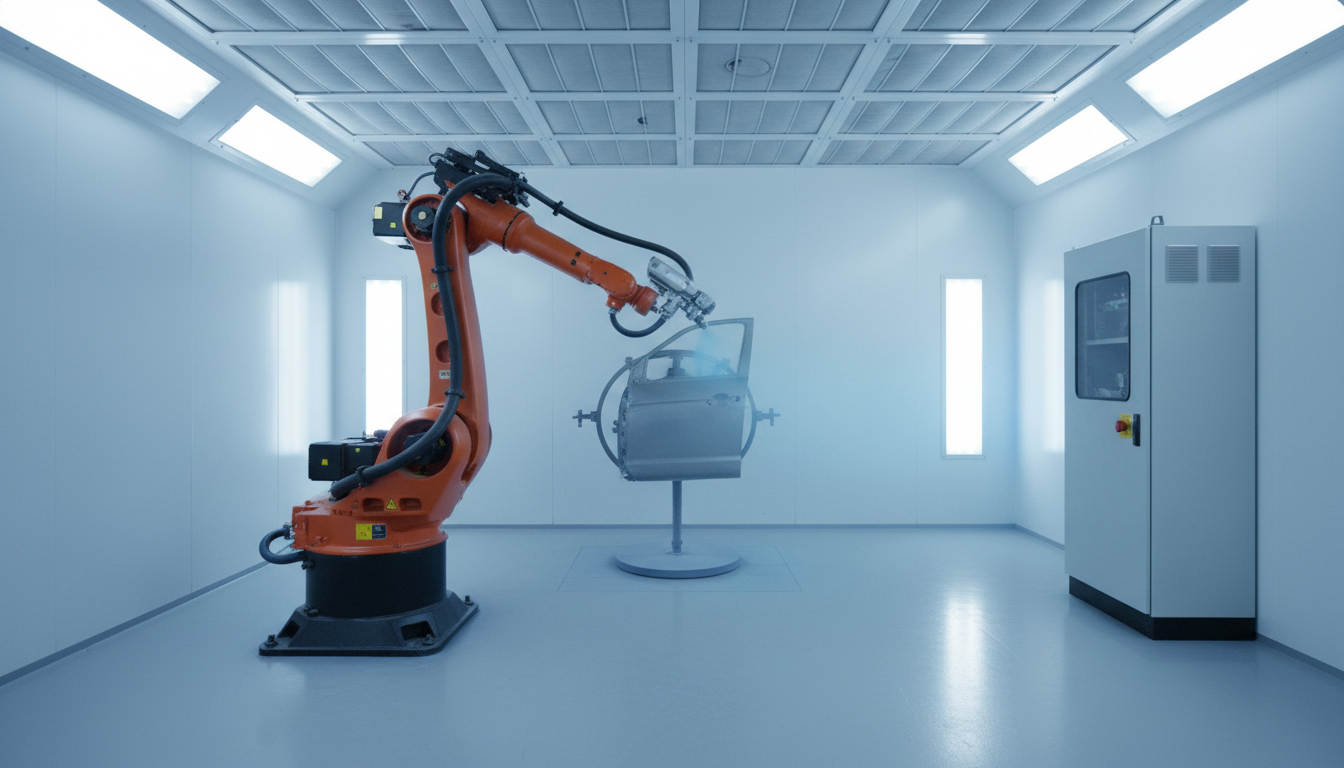

The robot path is the single most critical factor in achieving consistent paint quality. This guide covers proven techniques for path optimization that ensure uniform coverage, minimize cycle time, and reduce defects.
Path Fundamentals
A well-optimized spray path controls three critical parameters simultaneously: gun distance, gun angle, and spray velocity. Consistency in these parameters across the entire part surface is what separates professional results from amateur attempts.
Gun Distance
Maintain consistent standoff distance (typically 200-300mm) across all surfaces.
- • Too close: runs and sags
- • Too far: dry spray, orange peel
- • Variation: uneven film build
Gun Angle
Keep gun perpendicular to surface (±15°) for optimal transfer and uniform coverage.
- • Perpendicular = best transfer
- • Angled = overspray, thin edges
- • Surface-following critical
Spray Velocity
Control robot TCP speed to achieve target film build per pass.
- • Too fast: thin, incomplete
- • Too slow: heavy, runs
- • Typical: 300-600 mm/s
Path Strategy Selection
Horizontal Raster (Most Common)
Parallel horizontal passes with consistent overlap. Best for flat and gently curved surfaces.
When to use:
- • Flat panels, hoods, roofs
- • Surfaces with single primary curvature
- • When gravity-assisted flow is desired
Vertical Raster
Parallel vertical passes, useful for tall parts where horizontal paths would exceed reach.
When to use:
- • Tall vertical surfaces
- • Side panels and doors
- • Parts on vertical fixtures
Contour Following
Path follows part contours (edges, features). Provides best coverage on complex geometry.
When to use:
- • Complex 3D shapes
- • Parts with multiple surface transitions
- • When edge coverage is critical
