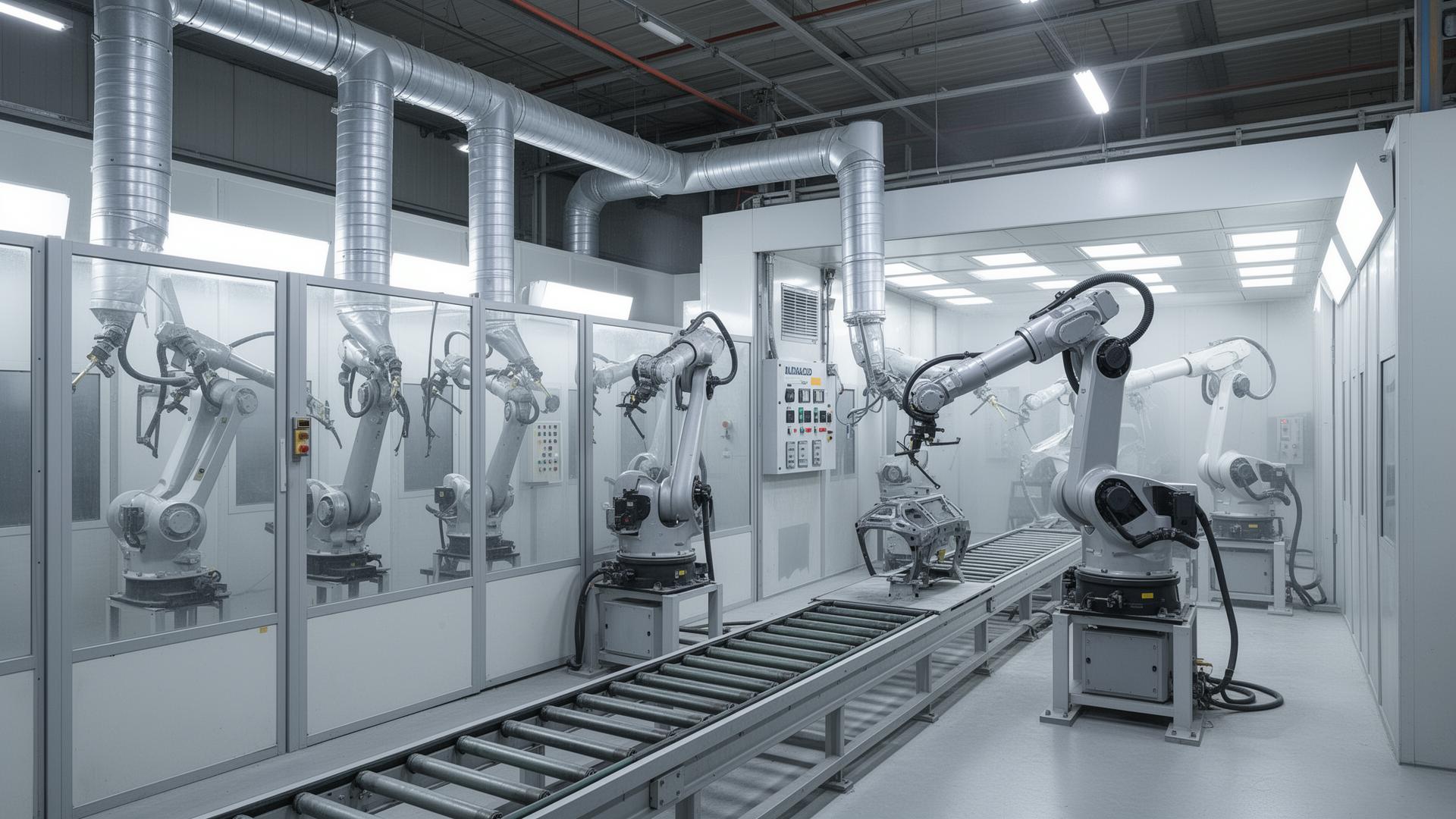

Complete robotic painting workstation cell

Paint Cell Solutions

Integrated robotic spray painting workstations engineered for your production environment. Every component designed to work together for optimal paint finish quality.

System Architecture

Four core subsystems engineered to work as one integrated solution.

Industrial Robot

6-axis articulated robots from leading manufacturers, optimized for spray painting applications.

  • Extended reach configurations (2-3.5m)
  • Explosion-proof variants available
  • Integrated wrist-mounted spray equipment
  • Hollow wrist design for cable routing

Spray Equipment

Complete fluid handling systems matched to your paint type and application requirements.

  • Electrostatic and conventional spray options
  • Automatic gun cleaning and purge systems
  • Multi-color systems with fast changeover
  • Precision flow and pressure control

Paint Booth & Ventilation

Purpose-built spray environments meeting safety and environmental standards.

  • Downdraft and crossdraft configurations
  • Explosion-proof electrical design
  • Integrated fire suppression
  • Efficient filter and exhaust systems

Process Controls

Advanced control systems for consistent paint parameters and full traceability.

  • Touch-screen HMI with recipe management
  • Real-time process monitoring
  • Data logging and quality reporting
  • Integration with plant MES/ERP

Automation Levels

Choose the right level of automation for your current needs with a path to scale.

Semi-Automatic

Operator loads and unloads parts manually while robot executes painting cycle.

  • Manual part loading
  • Automatic spray cycle
  • Operator supervision required

Fully Automatic

Integrated material handling for continuous operation with minimal intervention.

  • Conveyor integration
  • Automatic part tracking
  • Unattended operation capable

Phased Automation

Start semi-automatic with infrastructure designed for future automation upgrades.

  • Modular cell design
  • Pre-wired for automation
  • Scalable capacity

Why PaintCell?

Engineered advantages that set our solutions apart.

Safety & Compliance

Designed to meet CE, UL/NFPA, and ATEX requirements. Integrated safety systems include area scanners, light curtains, and emergency stops.

Rapid Deployment

Pre-engineered cell designs reduce lead time. Factory acceptance testing ensures systems arrive ready for installation.

Flexible Configuration

Modular architecture supports part variety, color changes, and production mix. Quick-change tooling minimizes changeover time.

Service & Support

Remote diagnostics, preventive maintenance programs, and rapid spare parts availability keep your system running.

Frequently Asked Questions

Common questions about robotic paint cell solutions and configurations.

A robotic paint cell is a fully integrated workstation that combines an industrial robot, paint equipment, ventilation, and process controls in a single engineered package. Unlike a standalone paint booth that only provides an enclosed paint environment, a paint cell delivers a complete turnkey automation solution ready for production.

Semi-automatic cells suit low-to-medium volumes where operators load parts manually and the robot handles painting. Fully automatic cells are ideal for high-volume, continuous production with conveyor integration and automatic part handling. Phased automation lets you start semi-automatic and upgrade incrementally as demand grows.

Typical installation takes 4–8 weeks depending on cell complexity, site preparation, and integration requirements. This includes mechanical setup, robot programming, paint parameter tuning, safety validation, and operator training. Modular pre-engineered cells can reduce this timeline significantly.

Routine maintenance includes daily tip cleaning, weekly filter inspections, monthly robot calibration checks, and quarterly full-system audits. Paint supply lines, pumps, and regulators need periodic service. Most facilities schedule a comprehensive preventive maintenance session every 6–12 months to maintain peak performance.
