Advanced surface preparation and maintenance technology for automotive painting operations.
What is Snowflake Cleaning?
Snowflake cleaning, also known as ACP (Air Crystal Pellet) technology, is an advanced dry cleaning method that uses compressed air to accelerate specialized cleaning pellets onto contaminated surfaces. The pellets—typically made from compressed dry ice (CO₂) or biodegradable crystals—impact the surface at high velocity, creating three cleaning actions:
Kinetic Energy
High-velocity impact (150-300 m/s) dislodges contaminants through mechanical force without substrate damage
Thermal Shock
Dry ice pellets at -78.5°C freeze contaminants, causing them to crack and separate from the surface
Sublimation
Dry ice converts directly from solid to gas, expanding 800x and lifting contaminants away
Key Advantages Over Traditional Cleaning
- ✓ No secondary waste: Cleaning media sublimates or evaporates, leaving only removed contaminants
- ✓ Non-abrasive: Won't damage paint booth walls, conveyor surfaces, or delicate fixtures
- ✓ Dry process: No water, solvents, or chemicals required—immediate return to service
- ✓ Environmentally friendly: Uses recycled CO₂, zero VOC emissions, no hazardous waste
- ✓ Reduced downtime: 50-70% faster than manual cleaning, no drying time needed
- ✓ In-place cleaning: Equipment doesn't require disassembly or relocation
Paint Booth Applications

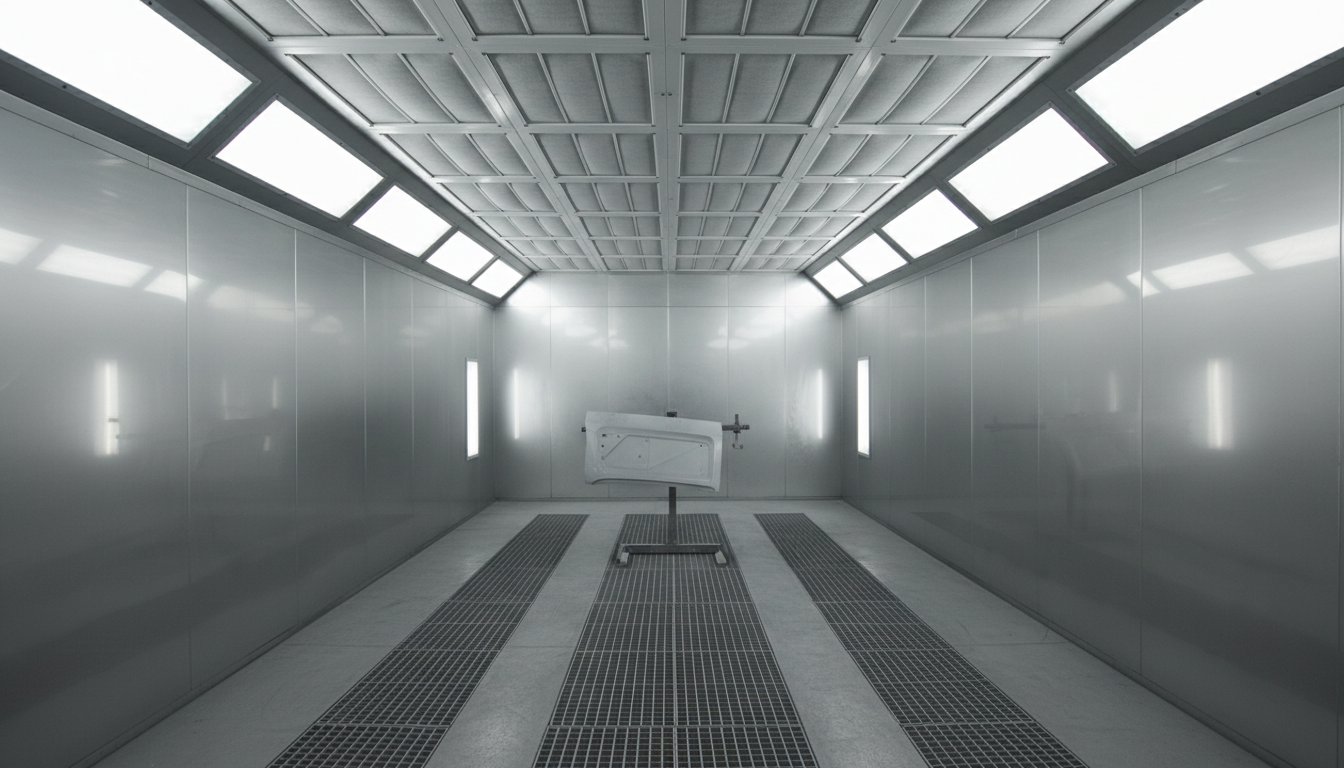

Paint Booth Wall & Floor Cleaning
Removes accumulated overspray from booth walls, floors, and grates without damaging coatings or creating sludge. Robotic systems can be programmed for automatic cleaning cycles during shift changes or weekends.
Conveyor System Maintenance
Cleans paint buildup from overhead conveyors, carrier fixtures, and hangers without removing them from the production line. Prevents paint chips from falling onto finished parts.
Robot & Bell Cleaning
Gently removes paint contamination from robot arms, bell housings, and high-voltage insulation without abrasive damage. Can be integrated into automatic bell wash cycles.
Fixture & Rack Cleaning
Strips paint buildup from part fixtures, racks, and masking without dimensional changes or substrate damage. Extends fixture life and improves part grounding.
