Paint Supply Systems: Circulation & Color Change
Content trust and applicability
Engineering guidance for robotic spray painting, paint booths, paint supply systems, and production-scope decisions.
Best used for early-stage feasibility checks, vendor comparison, scope definition, and internal project alignment.
Final specifications still depend on coating chemistry, part family, takt, utilities, site layout, local code, and EHS review.
Based on TD engineering team experience, recurring project delivery patterns, and equipment-integration practice.
Engineered for consistent paint delivery, rapid color changes, and minimal waste in high-volume robotic painting operations.
Reference Highlights: Paint Supply Technology

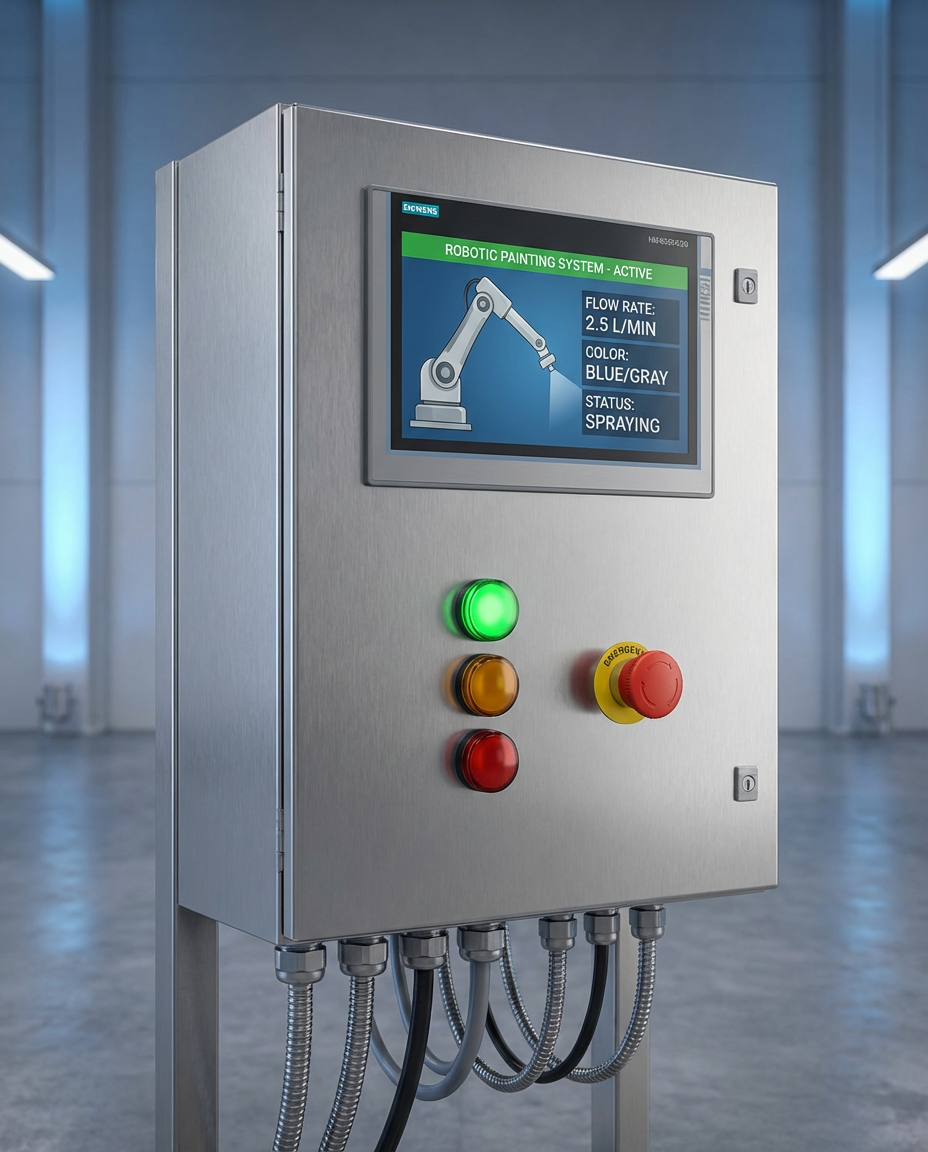

Endura-Flo Quick Cleaning
Reference layout for fast cleaning sequences, recipe switching, and operator confirmation during color changes.
See control integration

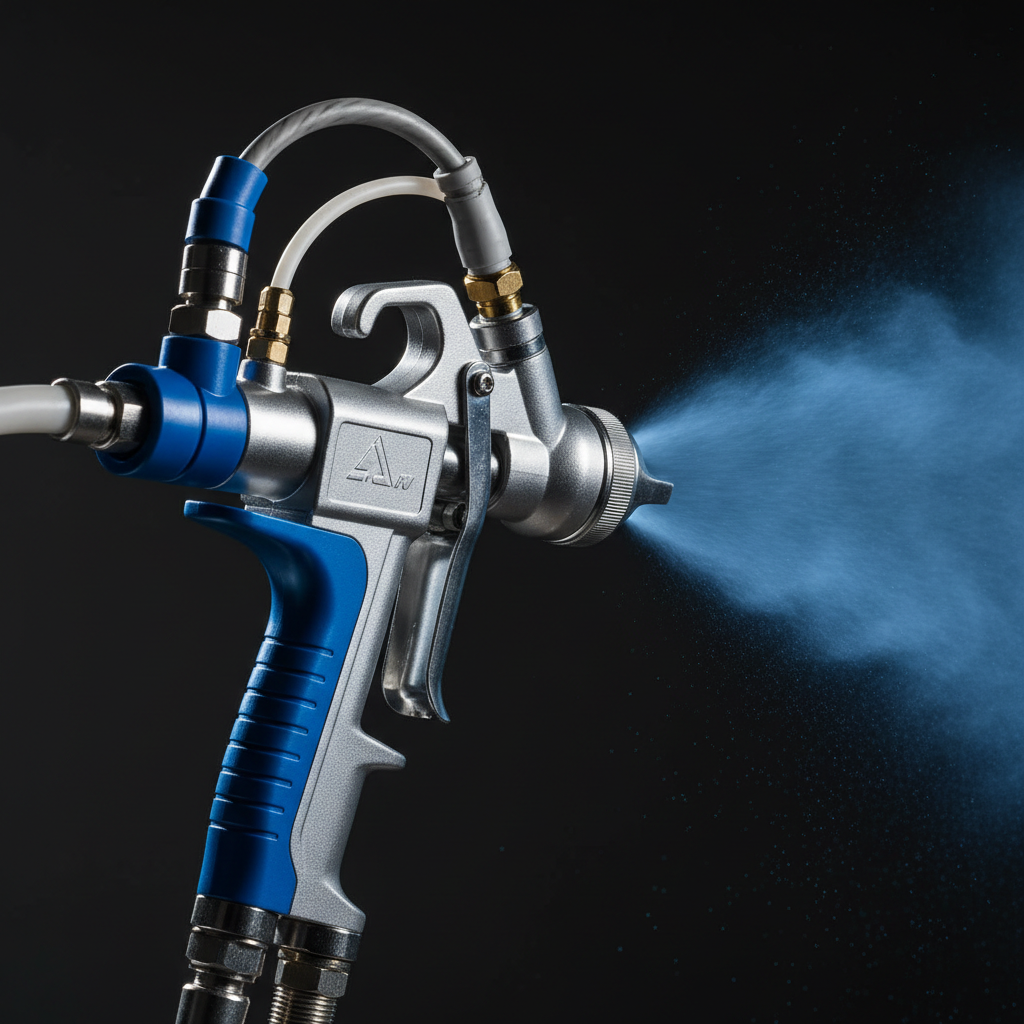

E-Flo DC Electric Pump
Precision fluid delivery setup for stable pressure control, repeatable dosing, and efficient multi-color production.
Browse video librarySystem Overview
A complete paint supply system consists of four integrated subsystems that work together to deliver paint at precise pressure, flow rate, viscosity, and temperature to each spray station:
Paint Kitchen
- • Central supply tanks (50-2000L) with agitators
- • Temperature control (±0.5°C accuracy)
- • Viscosity monitoring and adjustment
- • Level sensors and low-level alarms
- • Drum decanting stations with filtration
Circulation System
- • Main supply and return manifolds
- • Circulation pumps (gear, diaphragm, peristaltic)
- • Back-pressure regulators (0.5-350 bar)
- • Flow meters and pressure transducers
- • Insulated and heat-traced piping
Color Change
- • Cartridge-style color valves (4-36 colors)
- • Cascading flush for reduced solvent use
- • Recipe-based changeover sequences
- • Integrated solvent management
- • <150ml waste per color change
Pressure Control
- • Electronic pressure regulators
- • Closed-loop feedback control
- • Remote setpoint adjustment via PLC
- • Pressure relief and safety valves
- • Pulse-free delivery for consistent spray
Frequently Asked Questions
Need Help with Paint Supply?
Our engineering team can design complete paint supply systems from kitchen to spray gun, including circulation, color change, and 2K handling.
