Automated Rotary Bell Cleaning Systems
Purpose-engineered cleaning systems for electrostatic rotary bell atomizers. Ensure thorough cleaning during color changes, reduce solvent consumption, and maintain coating quality consistency.
Cleaning Process Highlights

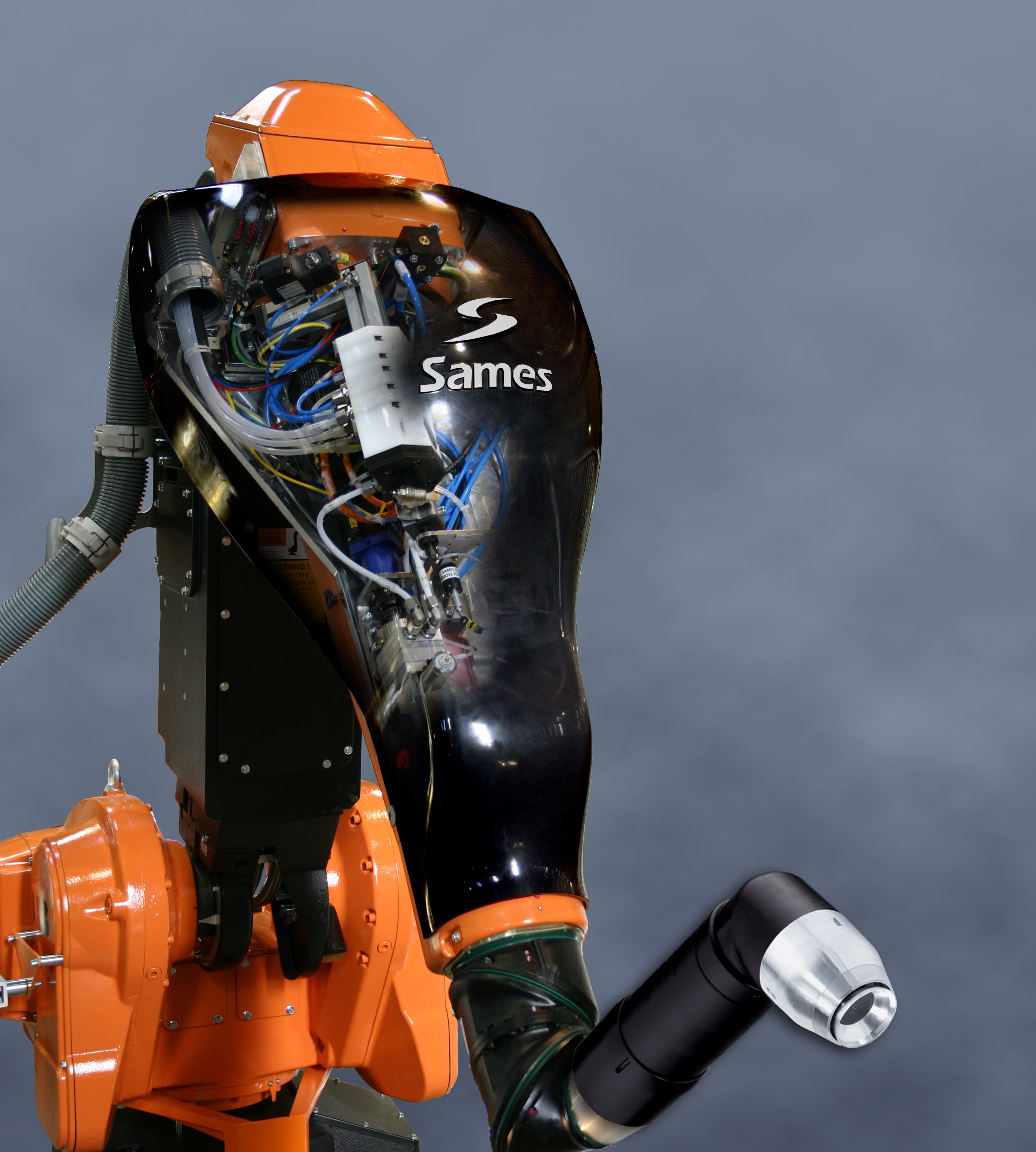

Rotary Bell Atomizer Cleaning Process Demo - Part 1
Step-by-step demonstration of rotary bell atomizer cleaning procedure

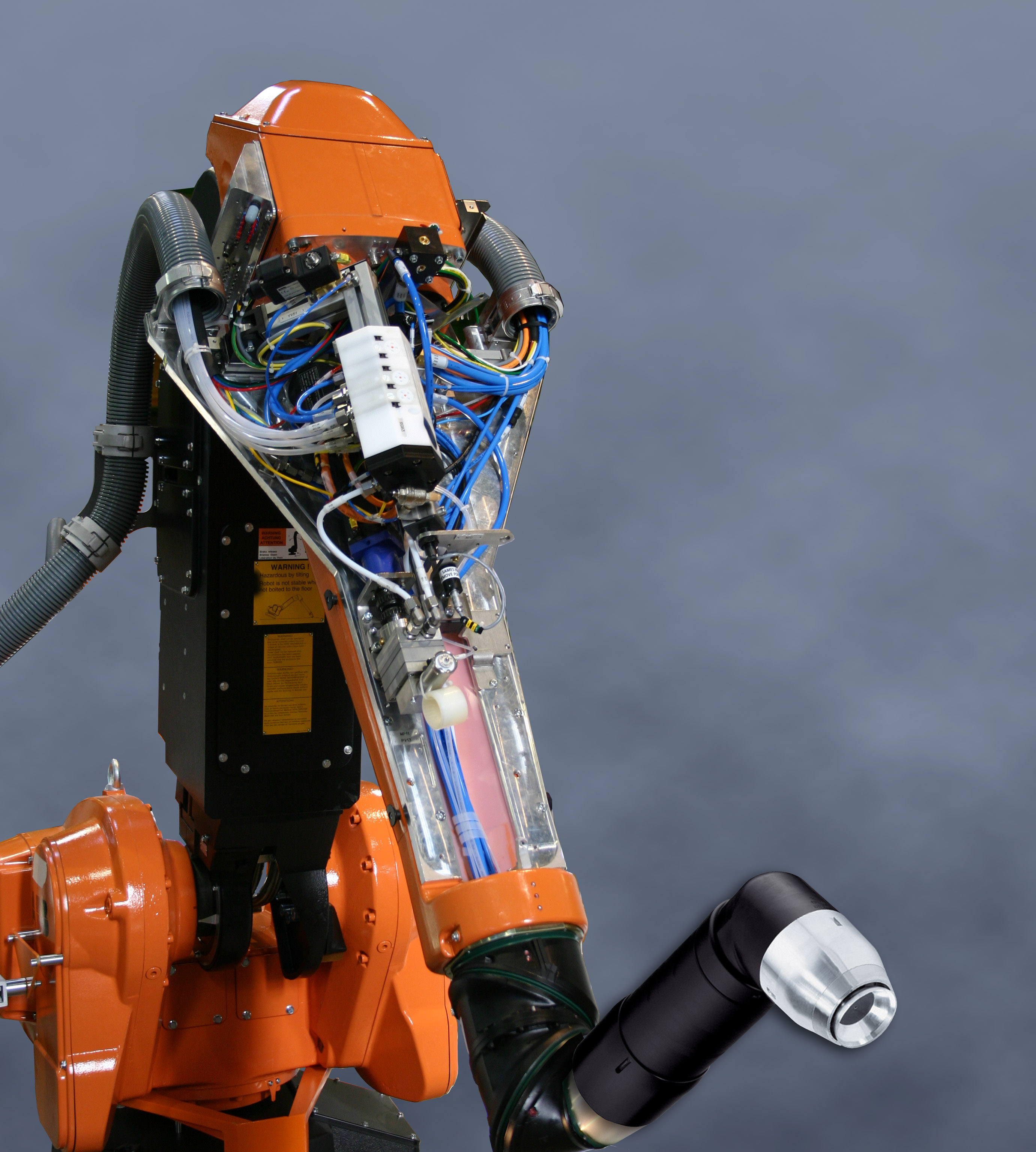

Rotary Bell Atomizer Cleaning Process Demo - Part 2
Post-cleaning inspection, cup reassembly, and performance verification
Rotary Bell Atomizer Troubleshooting Guide
Diagnostic procedures for common rotary bell atomizer issues
Reference frames summarize the standard cleaning workflow. Final sequence details vary by bell model, solvent strategy, and customer validation criteria.
Four-Stage Cleaning Cycle
Pre-Flush Cycle
Initial solvent flush removes bulk paint residue from bell cup and shaping air passages. Configurable duration based on paint type.
High-Pressure Clean
Pressurized solvent (up to 150 bar) cleans internal turbine passages, bearings, and shaft cavity where paint accumulates.
Air Blow-Off
Clean, dry compressed air removes residual solvent and moisture, preventing contamination of next color.
Quality Verification
Optional vision system verifies bell cup cleanliness, triggering re-clean if contamination detected.
Available Configurations
Single-Bell Cleaner
Compact unit for single robot stations
- Manual bell loading
- Basic solvent management
- Compact footprint
Dual-Bell Cleaner
Twin-station unit for high-volume lines
- Simultaneous cleaning
- Interchangeable stations
- Auto bell detection
Automated Cleaning Cell
Fully integrated cleaning with robot handling
- Robot-loaded operation
- Closed-loop solvent recovery
- Vision verification
Rotary Bell Compatibility
| Brand | Compatible Models | Support Level |
|---|---|---|
| ABB | RB1000i, RB1000, Robobell 625/925 | Full Support |
| Dürr | EcoBell U/V, EcoBell2 | Full Support |
| SAMES KREMLIN | PPH308, PPH707, PPH805 | Full Support |
| Graco | G1, G2 Copes Bell | Full Support |
| Ransburg | RB100, RB200 Series | Compatible |
Why Choose Our Bell Cleaning Systems
Fast color change with minimal production interruption
Optimized cleaning paths reduce waste
Zone 1 explosion-proof design for safety
Vision verification ensures no cross-contamination
Get Your Bell Cleaning Solution
Our engineers can help you select the right cleaning system configuration, optimize color change efficiency, and reduce solvent consumption.
